| Operating temperature | -10°C to 40°C |
|---|---|
|
Operating relative humidity |
< 90% |
|
Storage temperature |
-20°C to +50°C |
|
Adhesive tape service life |
6 months @ 1 sample every 10 min |
|
Protection |
IP53 |
|
Aerosol sampling size |
500 nm to 200 µm |
|
Sound volume |
60 dB typ. |
| Detection method | Optical Microscopy |
|---|---|
|
Optical size limit of detection |
1 µm (with standard 10x optical lens) |
| Optical granulometry | 0.5 Hz max from 2 µm to 200 µm |
|---|---|
|
Tape sampling period |
Adaptive, 1 min to 6 hours |
|
Image sampling period |
Adaptive, 2 s to 6 hours |
|
Multi-scan mode |
Up to 20x pictures per sample along the tape |
| Aerosol types classification | Server side IA classification, every 10 min (Soot particles, mineral dust, pollen taxa, fungal spores…) |
|---|---|
|
Pollen detection |
Server side IA classification, every 10 min |
|
Pollen detected |
10 most allergenic taxa |
|
Spore detection |
Server side IA classification, every 10 min |
|
Aerosol source localization |
Server side IA classification |
|
Cloud Fleet Management & Monitoring Solution |
Secure MQTT protocol, automated alert system |
| Power supply | 100 VAC to 240 VAC |
|---|---|
|
Power Line Frequency |
50 Hz to 60 Hz |
|
Electrical standard |
IEC/EN/ES 60601-1 and UL/EN/IEC 62368-1 |
|
Power consumption without heating |
80 W |
|
Max internal heater power consumption |
150 W |
|
Max power consumption |
230 W |
| Enclosure | Fiberglass polyester, UV resistant |
|---|---|
|

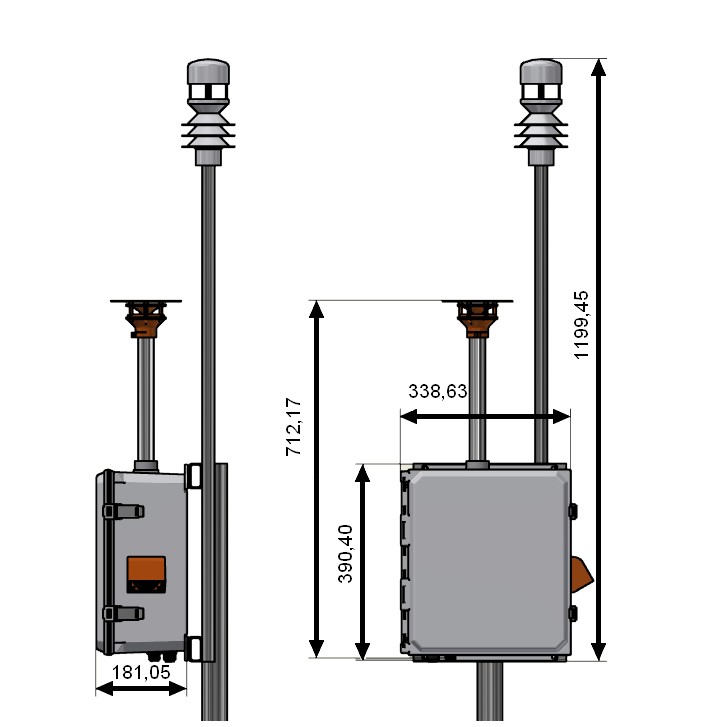

Dimension (W x H x D) |
339 mm x 391 mm x 181 mm |
|
Weight |
10 kg |
|
Freestanding fixing support |
– Fixing Poles – 180 cm high, 100 kg ballast |
|
|
– Trestle (standard), Galvanised steel, 15-128 cm high, 80 kg ballast |
|
Easy install, no foundation required |
| Wifi, LAN | Recommended |
|---|---|
|
4G with external modem |
SIM card not provided |
| Sample timestamp | Yes (mechanical) |
|---|---|
|
Sample post analysis |
Yes (GCMS, HPLC, AAS…) |
|
Enclosure temperature & humidity control period |
Every 10 sec |
